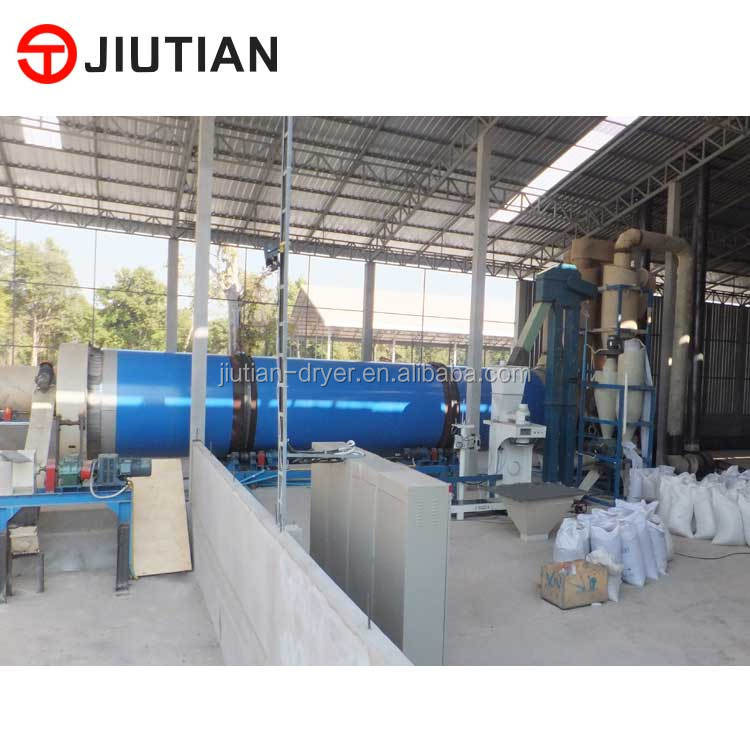

Professional Continuous Drying Machine Sugar Beet Slag Rotary Drum Dryer Machine Manufacturer

1 Piece
MOQ
Professional Continuous Drying Machine Sugar Beet Slag Rotary Drum Dryer Machine Manufacturer
Caratteristiche Galleria Descrizione di prodotto Richieda una citazione
Caratteristiche
Specificazioni
Type: Rotary Drying Equipment
Application: Drying Processing
Condition: New
Place of Origin: Henan, China
Marca: Jiutian
Voltage: 220v-10kv
Power: 5.5kw
Dimension(L*W*H): Customized
Key Selling Points: Energy saving
Warranty: 1 Year
Weight (KG): 5000
Applicable Industries: Manufacturing Plant, Energy & Mining
Showroom Location: None
Marketing Type: New Product 2020
Machinery Test Report: Provided
Video outgoing-inspection: Provided
Warranty of core components: 1 Year
Core Components: Motor, PLC
Heating Method: Biomass, natural gas, diesel, coal
Material: SUS304, SUS304L, SUS316, SUS316L, Ti
Product name: Sugar Beet Pulp Dryer
Capacity(t/d): 43.2
Early moisture(%): 60-70%
Final moisture(%): 30%
Temperature range(℃): 350-450℃
Application material: Beet pulp, pomace, spent grain, etc.
Feature: Continuous Drying Machine
After-sales Service Provided: Field installation, commissioning and training
After Warranty Service: Video technical support
Local Service Location: None
Informazioni di base
Place of Origin: Henan, China
Marca: Jiutian
Termini di pagamento e spedizione
Packaging Details: Container packing
Supply Ability: 10 Piece/Pieces per Month
Descrizione di prodotto
Model
Input (t/d)
Initial Moisture(%)
Final Moisture(%)
Temperature(℃)
Power(kw)
JTJG1208
36






65±5%






30%






350-450℃
32
JTJG1408
43.2


40
JTJG1610
62.4


55
JTJG1910
72.0


75
JTJG2010-3
139.2


95
JTJG2210-3
153.6


100
JTJG2510-3
177.6


125
JTJG2512-3
216.0


145
JTJG2912-3
261.6


165
Beet pulp dryer, which is also named impeller mixing rotary drum drier, rake roller dryer, rotary rake drum dryer, rotary paddle roller dryer. It is specifically designed according to the problems of traditional rotary dryer which is not suitable for
high-moisture materials that MC is higher than 50% and the viscosity is relatively low. Meanwhile since the ‘black hole’
phenomenon occurring in the drum lowers the drying capacity and raises the energy consumption, the paddle rotary dryer sets high-speed spinning paddles, strengthening the crushing and separating function. The crushing effect enlarges the contact surface of particles, which largely increase the heat transfer rate and vaporization rate. According to the practical test, the unit vaporization capacity per hour of paddle rotary dryer is as much as 25-60kg/m2, which is 1-2 times of traditional rotary dryer. The output is raised by 50% and fuel consumption is reduced by 30%. At the same time, the footprint and drying efficiency is raised by 40%. It is applicable for the drying process of high-moisture materials with 50%-85% moisture, such as sugar beet pulp, sludge, bean dregs, starch residue and sauce residue, spray corn bran, cassava dregs, brewer's grains, distiller's grains, straw, grass, organic fertilizer, chicken beef feces . We also help optimize the drying process according to the property of different biomass materials, production scale, application requirements, cost control, automation level and site condition.
Features
1.It can realize intelligent control, one-touch operation, automatic operating parameter control. The dryer stays at the best operating status all the time, thus guaranteeing that the dried material is of stable moisture and bright color.  2.The internal agitator can realize the process of mixing ,dispersing and crushing ,which ensure the full mass transfer and heat transfer between hot air and wet material.the unit capacity is raised to more than 50% and the energy consumption is reduced by more than 30%. 3. It adopts four-wheel driving which is more stable and reliable. 4. Saving 40% space and civil investment and 20%equipment investment compared to traditional dryers. 5. The inner structure of dryer uses multiple efficient lifting plates combined mode, thus controlling the drying process and heat distribution effectively. High heat use ratio, the discharged off-gas temperature is lower than 50℃. 6. It controls the material flow by frequency control. Users can adjust the required final moisture index easily based on requirement. 7. Modularized dust collecting-purifying heat recycle use allocation, safe and environmental. 8. It can be matched with a few new type hot blast stove. Efficient and energy-saving, controllable heat supply, simple operation. The energy consumption decline reaches up to 30 %, power consumption decreases by 20 %, the operating cost is lower.

Working Principle

Material Flow: the raw material with 80-85% moisture will be sent into the dewatering machine, and then the moisture will be reduced to 60-65%, then feed into the dryer by screw conveyor, concurrent flow drying. Under the effect of inner shoveling plate, materials are took and scattered constantly, and move in spiral forward method. Through three layers (inner, middle and outer layer), heat exchange are realized between material and hot air medium. The materials that achieve drying effect move forward fast and are discharged out of the roller. Wet materials that still don’t achieve drying effect couldn’t move fast due to self-weight, and are dried completely during the controlling route, thus achieving drying effect. . After the whole drying process is completed, materials are discharged by screw conveyor. Inside the roller is installed with vibrating cleaning device, which prevents materials from bonding to the cylinder wall. Air Flow: through hot blast stove and air blower inflating, the air enters into the hot blast stove for combustion heating. Its temperature reaches up to 600-850℃, then it is inhaled by the dryer induced draft fan to dry material and evaporate water. When temperature decreases to 55-60℃, it is discharged out of the dryer. Wet air containing dust are discharged on standard through dust remover purifying.
Q: What is your Business Model? Trading company or factory?
A: We are a 17 years factory, all our machinery is manufactured by ourselves, factory direct sales, product quality, and
after-sales service can be guaranteed.

Q: Can I visit your factory?
A: Yes. Many domestic and international customers visit our factory every year. Our company is located in Zhengzhou Henan province, China, you can come here by air or train. The nearest airport is Zhengzhou Xinzheng International Airport, and the Airport Code is CGO.We will pick you up at the airport. Welcome to visit our factory.

Q: What is the Quality of your products?
A: Zhengzhou Jiutian products come with the best quality, and our products passed CE certification, exported to lots countries around the world, such as Australia, Malaysia, India, Italy, Indonesia, Vietnam, Philippines, Korea, Brazil, Argentina, Russia,South Africa, etc. You can rest assured of the quality absolutely.

Q: How long is the Warranty of your equipment?
A: Our warranty period is one year generally.
